Product Details:
|
| Product Name: | Electric Hoist | Lifting Speed: | 0.8/8M/Min |
|---|---|---|---|
| Control Method: | Remote Control | Lifting Capacity: | 0.5T~30T |
| Safety Device: | Overload Protection Device/Limit Switch | Color: | Customized |
| Lifting Height: | 6-30m | Usage: | Construction Hoist, Mining Hoist, Material Handling, Portable, Household |

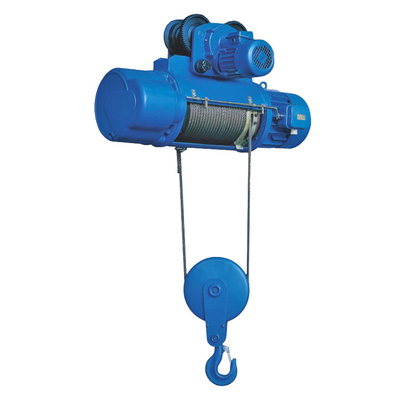

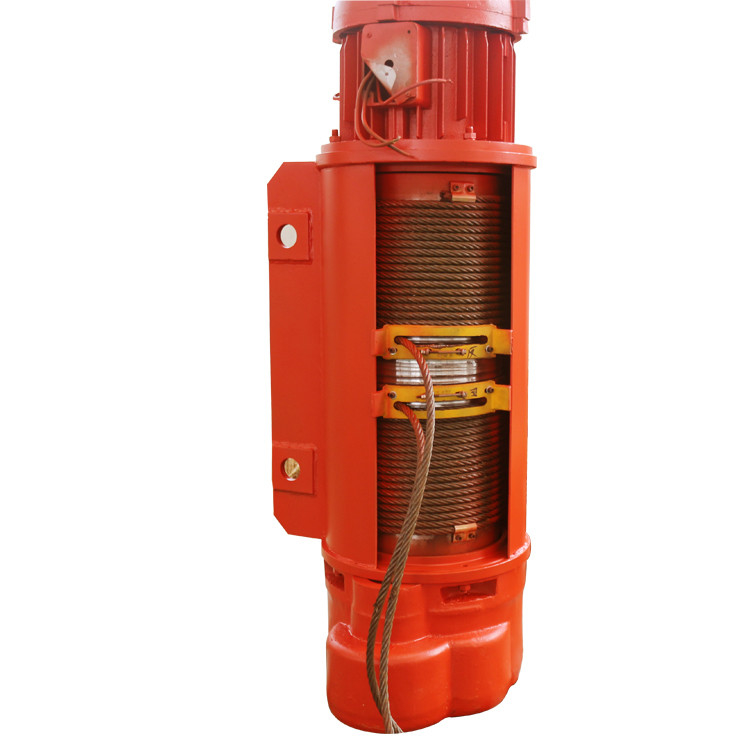

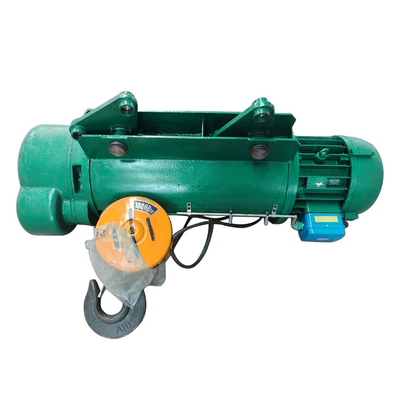

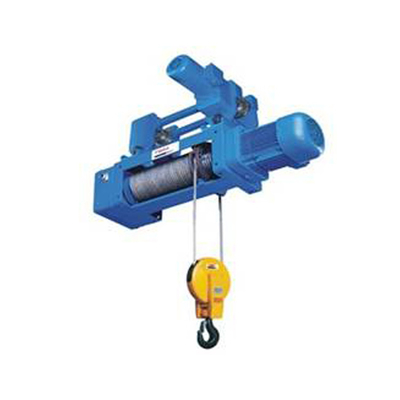

Qualified Electrical Lifting Machine 1t-30t Light Duty Electric Hoist
An electric hoist is a crane using hoist with a lifting capacity ranging from 0.5T to 30T. It has a remote control to enable easy and safe operation. The color of the hoist can be customized to suit various needs. It has a lifting height of 6-30m and a lifting speed of 0.8/8M/Min. It is designed with high safety standards and is highly efficient, making it an ideal choice for various applications. The electric hoist is a reliable, durable and cost-effective solution, making it an ideal choice for any lifting project. It is easy to install and operate, making it a great choice for any lifting project.
|
Very Popular Vertical Lifting Wire Rope Electric Cable Hoist Winch
|
||||||||
|
Model
|
CD/MD
0.25t
|
CD/MD
0.5t
|
CD/MD
1t
|
CD/MD
2t
|
CD/MD
3t
|
CD/MD
4t
|
CD/MD
5t
|
|
|
Lifting Weight
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
|
|
Lifting Height(m)
|
3-9
|
6-12
|
6-30
|
6-30
|
6-30
|
6-30
|
6-30
|
|
|
Lifting Speed(m/min)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
7(7/0.7)
|
|
|
Running Speed
|
20(30) m/min
|
|||||||
|
Wire Rope Model
|
6×19-3.6
|
6×37-4.8-180
|
6×37-7.4-180
|
6×37-11-155
|
6×37-13-170
|
6×37-15-200
|
6×37-15-200
|
|
|
I-beam Track Model
|
16-22b
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-63c
|
28a-63c
|
|
|
Minimum radius of circular orbit(m)
|
0.8
|
1.5
|
1.5-4
|
2-4
|
2-4
|
2.5-5
|
3.5-9
|
|
|
Lifting Motor
|
Motor
|
ZD12-4
|
ZD21-4
|
ZD22-4
|
ZD31-4
|
ZD41-4
|
ZD41-4
|
ZD51-4
|
|
ZDS0.2/1.5
|
ZDS0.2/1.5
|
ZDS0.4/3
|
ZDS0.4/4.5
|
ZDS0.8/7.5
|
ZDS1.5/13
|
|||
|
Capacity
|
0.4
|
0.8 0.2/0.8
|
1.5 0.2/1.5
|
3 0.4/3
|
4.5 0.4/4.5
|
7.5 0.8/7.5
|
13 1.5/13
|
|
|
rotation rate
|
1380
|
1380
|
1380
|
1380
|
1380
|
1400
|
1400
|
|
|
Power supply
|
3P 380V 50HZ
|
|||||||
Dowell Crane Electric Hoist is a reliable and powerful lifting equipment for industrial and construction applications. It is designed and manufactured with cutting-edge technology, providing overhead lifting solutions that are both efficient and safe. With a wide range of models to choose from, Dowell Crane Electric Hoist is the perfect choice for a variety of jobs such as suspending and moving heavy objects, lifting and transferring goods, and product assembly.
Dowell Crane Electric Hoist is available in a variety of models, including Overhead Electric Hoist, Electric wire rope Hoist, and Remote controlled Electric Hoist. These hoists come with a model number CD MD, and are certified with both CE and ISO. It has a lifting height of 6-30m and an ambient temperature of -20℃~+40℃, and can be customized in terms of color. It is equipped with engineers available to service machinery overseas, field maintenance and repair service, and free spare parts.
The minimum order quantity for this product is 1 set, with a price range of US$350.00-US$6,450.00. It is packed with electric hoist in water-proof film and spare parts in high quality plywood box. Delivery is usually completed within 15 days after payment is received. Acceptable payment methods include L/C, T/T, Western Union. The supplier has a supply ability of 200 sets per month.
We provide technical and service support for our Electric Hoists. We aim to provide customer satisfaction and timely service.
Electric hoists are typically packaged with protective cardboard, foam, and plastic covers to prevent potential damage during transport and shipping.
When shipping electric hoists, they should be placed on a pallet and strapped with protective straps to prevent any movement or damage during the shipping process.
The electric hoist should also be packaged with a weatherproof cover to protect it from rain, snow, and other weather conditions.
It is important to ensure that the proper labeling is applied to the package, including the address and contact information of the recipient.
A: The brand name of the Electric Hoist is Dowell Crane and the model number is CD MD.
A: The Electric Hoist is manufactured in China (Mainland).
A: Yes, the Electric Hoists are certified by CE ISO.
A: The minimum order quantity for the Electric Hoist is 1 Set.
A: It takes 15 days to receive the Electric Hoist.
